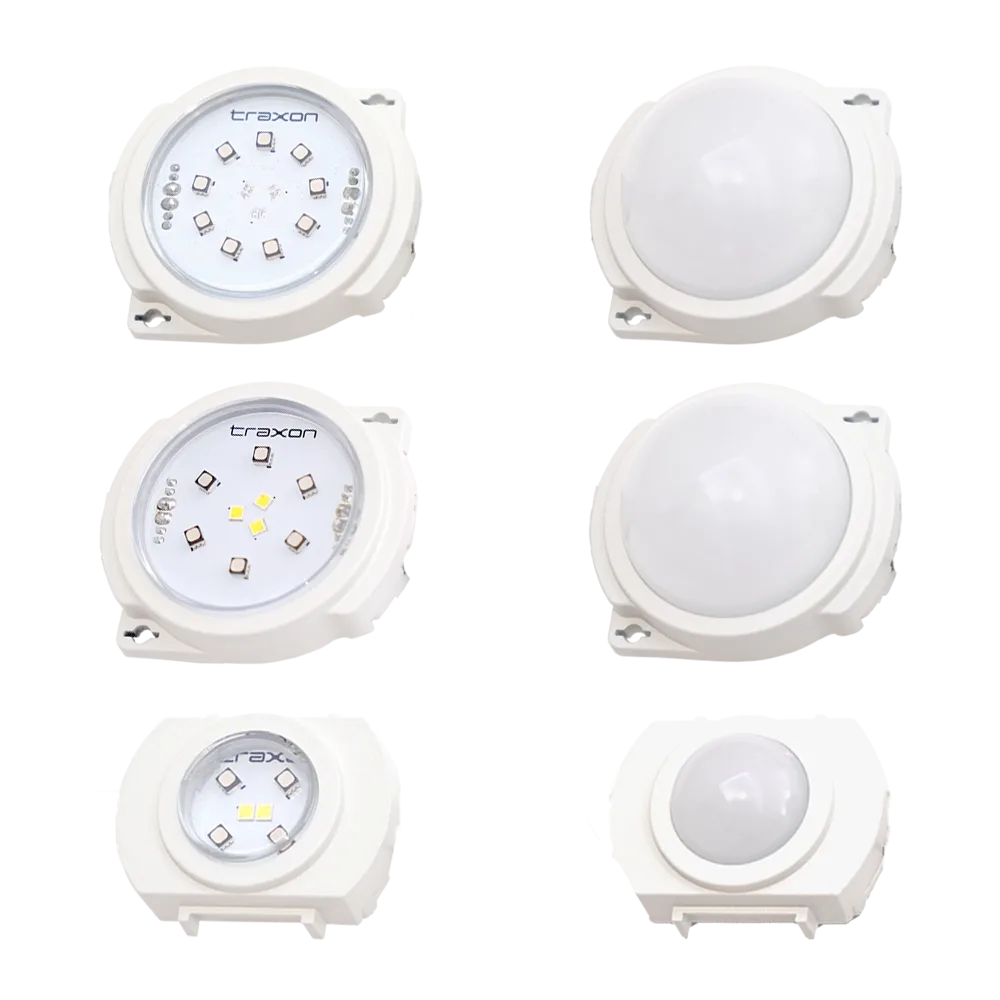

Allegro Dot XS

Our smallest, high-brightness media dot for scalable projects

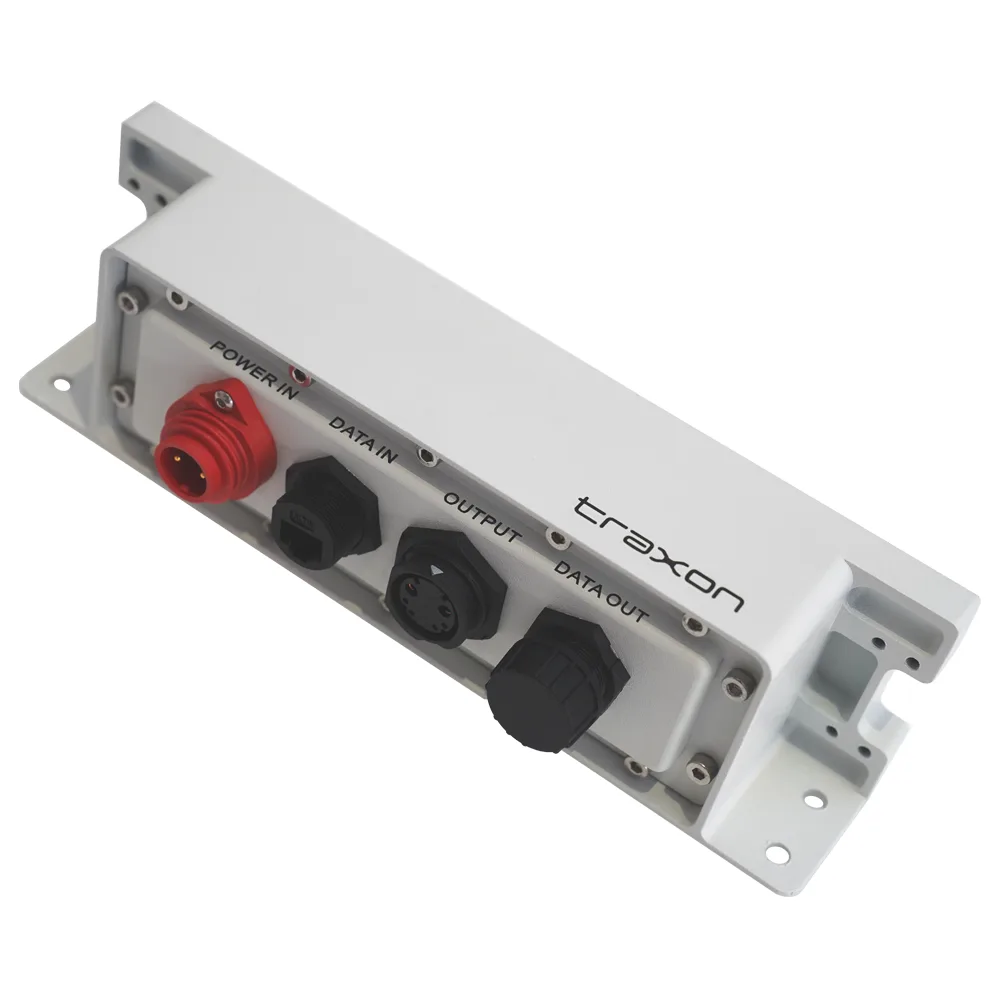

Allegro Dot XS is the newest and smallest member of the intelligent Allegro Dot family which enables longer chains of illuminated Dots. The Allegro Dot XS is ideal for outdoor media applications, where it can be integrated seamlessly into the façade, or it can be installed to float in the air with our highly transparent mounting options. Each system is driven by the PXL Distributor Pro 8 (PDP8) which integrates power and data into one unit, reducing the space required for installation components. Each PDP8 can support up to eight Allegro Dot XS outputs with e:net IN and OUT.

Request information

Applications

GIFT CityView project

Key Product Specifications

Dots per String	Up to 80
Pixel Pitch	50mm–500mm (std 90mm)
IP Rating	IP66
Color Options	RGB, RGBW, Dynamic White
Control	e:net

Key features

IP20
IK05
Zone 4

Auto-addressing

Four standard mounting options incl. transparent mesh grid

Suitable for coastal environments

Standard 80 Dots per string and 3.5” / 90mm Pixel Pitch

Pixel Pitch range from 2” / 50mm up to 19.7” / 500mm

Up to 640 Pixels per system

e:net Controlled*

IP66 and suitable for Coastal Environments

Colour Options

2400k
2400k
DW 2700K - 5700K
6500K
2700K

Miscellaneous

Auto-addressingAddressOne: Intelligent algorithm for auto addressing
Fully CustomizableVariable pixel pitch and number of dots per string Up to 80 Dots per string
