GT12X

e:bus2 wall-mounted interfaces

The Glass Touch GT12X is a user terminal featuring a modern design with a glass surface and touch-sensitive keys for intuitive operation. It supports both the DALI-2 protocol and the Butler XT3 via the e:bus2 protocol.

Suitable for a variety of high-end lighting applications — including hotel rooms, offices, conference spaces, residential settings and cruise ships — the Glass Touch GT12X combines functionality with a clean aesthetic.

The device is wall-mountable and supports the connection of up to 8 units via e:bus2, using flexible wiring topologies such as daisy chain or star.

Request information
GT12X on the wall — open-plan office
GT12X on the wall — open-plan office

Key Product Specifications

Dimensions (W x H x D)80 x 160 x 12 mm / 3.15 x 6.3 x 0.47 in
Weight200 g (incl. mounting plate)
Power supplyvia DALI-2 bus or e:bus2 (2-wire cabling)
Power consumption0.15 W max.
Operating temperature0 … 45 °C / 32 … 113 °F
01Key features
01
Interfaces & Controls
13 touch-sensitive sensor keys plus a palm (hand) function, a status LED on every key for clear feedback, a key-combination lock for safe cleaning, and a beeper that can be switched on or off.
02
Design & Customization
White glass with empty keys for custom labelling, white glass with numbered keys, or fully custom-printed glass — design your own text and symbols, or slide printed labels into the integrated label tray.
03
Connectivity & Certification
DALI-2 certified, and speaks e:bus2 to the Butler XT3 (not compatible with older e:bus systems).
04
Installation & Power
Fits standard in-wall electrical boxes and is powered from DALI-2 or e:bus2 — no separate power supply. Topology-free 2-wire power and data cabling; daisy-chain up to 8 devices via e:bus2.
02Design & Customization

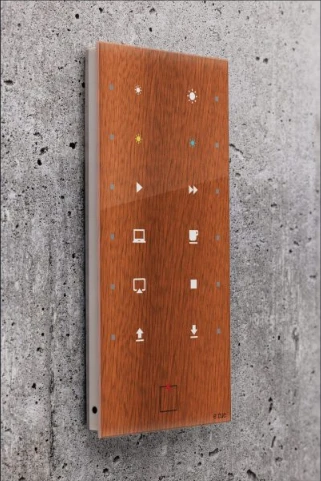

Choose the look that fits the room: • White glass with empty keys for custom labelling • White glass with a fixed number layout • Fully custom-printed glass — your own text, symbols, colours and pictures Or keep the glass and slide printed labels into the integrated label tray. Design your own print or insert with the Glass Touch Designer further down this page, then download it ready to print.

03System Topology

The GT12X runs on two 2-wire buses — power and data on the same pair, in any topology.

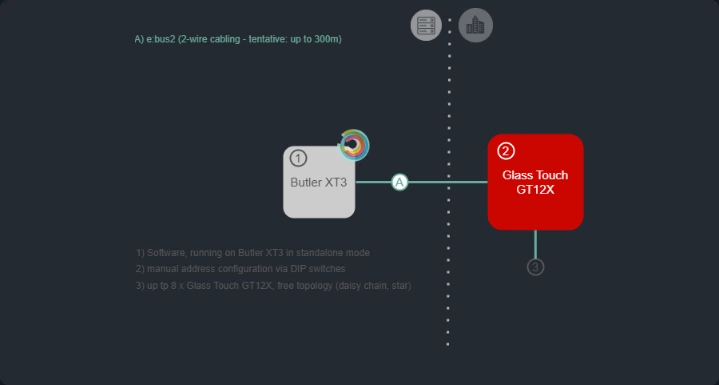

e:bus2 · Butler XT3

A) e:bus2 — 2-wire cabling, tentative: up to 300 m 1) Software running on the Butler XT3 in standalone mode 2) Manual address configuration via DIP switches 3) Up to 8 × Glass Touch GT12X, free topology (daisy chain, star)

04All for your project

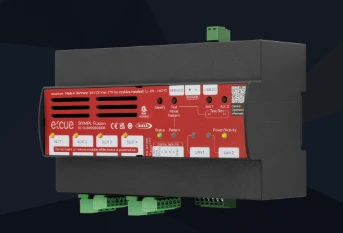

SYMPL Fusion

FUSION is the ultimate lighting controller, seamlessly merging dynamic and functional lighting control into one powerful device.

05Specifications
Dimensions (W x H x D)80 x 160 x 12 mm / 3.15 x 6.3 x 0.47 in
Weight200 g (incl. mounting plate)
Power supplyvia DALI-2 bus or e:bus2 (2-wire cabling)
Power consumption0.15 W max.
Operating temperature0 … 45 °C / 32 … 113 °F
Storage temperature-20 … 75 °C / -4 … 167 °F
Operation/Storage humidity0 … 80% RH, non-condensing
Protection classIP40
HousingGlass (surface), Aluminium (mounting plate), ABS (housing body) UV, scratch and cleaning detergent resistant
MountingIn standard in-wall fitting
CertificatesCE, DALI-2, ETL pending
Interfaces2 x DALI-2 or e:bus2 (not e:bus compatible!)
Addresses1
DALI-2 power consumption4 mA typical, max. 10 mA
User interfaces13 x capacitive touch sensor 13 x feedback LED (monochrome red, protocol controlled) Rotary DIP switch (protocol selection, e:bus2 addressing)
BeeperAcoustic feedback
Terminal connection typePush-In
Wire size solid core, stranded wire without end ferrule0.2 … 1.5 mm² (AWG24 … AWG16)
Wire size stranded wire with end ferrule0.2 … 0.75 mm² (AWG24 … AWG19)
Stripping length8 mm / 0.31 in
Tightening / release of wirePush button
06Resources & downloads
No downloads published for this family yet.
07Glass Touch Designer

Design your own glass print or paper insert. Tap a key, type a label or pick an icon, then download.

··123456789101112··

Key 1

70
Your design is kept in this browser only — nothing is sent to us. Save a project file to keep a copy.
08Models in this family
Every model below shares the description above and differs only in the options listed.
GT12X White – Custom labeling
Order code · CL25100005435
White glass with empty key areas for your own labels.
GT12X White – Fixed Number Layout
Order code · CL25100008135
White glass with numbered keys.
GT12X Custom Print
Order code · CL25200008035
Fully custom-printed glass for a unique, tailored look.
