SYMPL Core Sp

e:cue SYMPL Core Sp is a stand-alone engine for e:cue SYMPHOLIGHT with SYMPL Nodes functioning as interfaces. It can run small to medium-sized SYMPHOLIGHT shows and control all the available SYMPL Nodes. Operating as an interface for the user, the Action Pad – an essential part of SYMPHOLIGHT – can employ all standard web browsers. The connection between Core Sp, external systems, and the Nodes is established via the common Ethernet network. Projects can be transferred to Core Sp from a SYMPHOLIGHT PC version or via web interface.

Request information
SYMPL Core Sp
SYMPL Core Sp

Key Product Specifications

Dimensions (W x H x D)71.5 x 90.5 x 62 mm / 2.81 x 3.56 x 2.44 in (without fastening clip)
Weight170 g / 0.37 lb
Power Supply24 … 48 V DC on terminal plug or PoE IEEE 802.3af on RJ45
Power ConsumptionMax. 12 W incl. external USB load
Operating Temperature-20 … 40 °C / -4 … 104 °F
01Specifications
Dimensions (W x H x D)71.5 x 90.5 x 62 mm / 2.81 x 3.56 x 2.44 in (without fastening clip)
Weight170 g / 0.37 lb
Power Supply24 … 48 V DC on terminal plug or PoE IEEE 802.3af on RJ45
Power ConsumptionMax. 12 W incl. external USB load
Operating Temperature-20 … 40 °C / -4 … 104 °F
Storage Temperature-20 … 70 °C / -4 … 158 °F
Electrical SafetySELV
Operating/Storage Hum.0 … 80% non-condensing
Protection ClassIP20
Housing MaterialSelf extinguishing blend PC/ABS UL document E140692
Mountingon 35 mm DIN rails (EN 60715) Width: 4 units
CertificationCE, ETL, UKCA
CoolingFanless, Convection cooling
User Interface4 LEDs (Master/Slave, Error/Status,Ethernet, Power) 1 button
Mass memorymicroSD card
02Resources & downloads
PDFEN SYMPL CoreSp Spec V3p0333 KBOpen ↗Download ↓
PDFDE SYMPL CoreSp Spec V3p0330 KBOpen ↗Download ↓

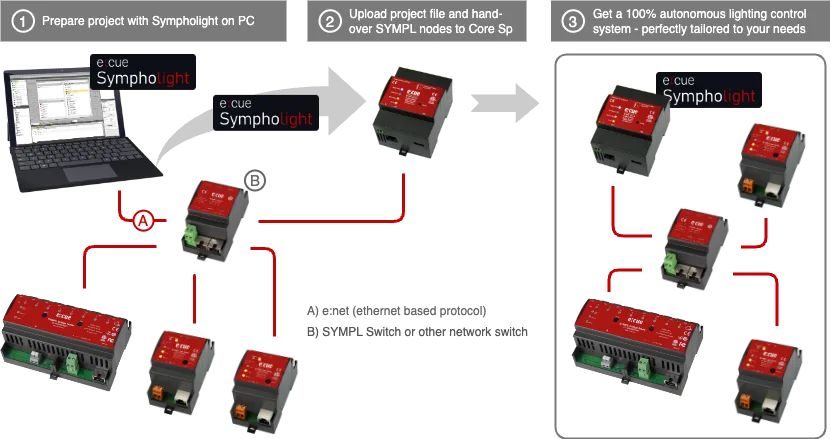

SYMPHOLIGHT engine for small to medium-sized projects Connections to SYMPL Nodes via Ethernet (scalable) SYMPHOLIGHT ActionPad as user interface utilizing all standard web browsers Flexible mounting on 35 mm DIN rails or vertical surfaces microSD card as means for storage of show files and content Separate web interface for configuration

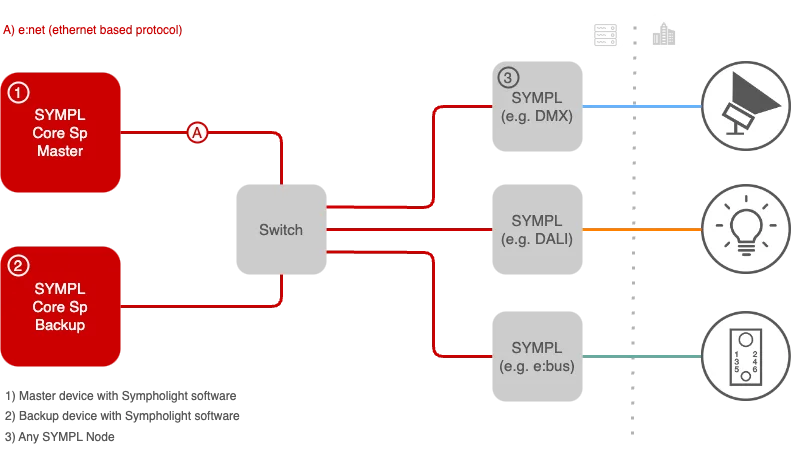

03System Topology
04Performance limitations

Functional DALI lighting setup with one Core Sp and several Nodes (example): max 256 ballasts and max 64 virtual DALI groups and max 42 DALI buttons and max 42 PIR motion sensors and max 42 light sensors Dynamic DMX / e:pix lighting setup with one Core Sp and several Nodes (example): 5000 RGB / RGBW pixel, content running on max two timelines simultaneously or 5000 White channel, content running on max two timelines simultaneously
