Linear Plus

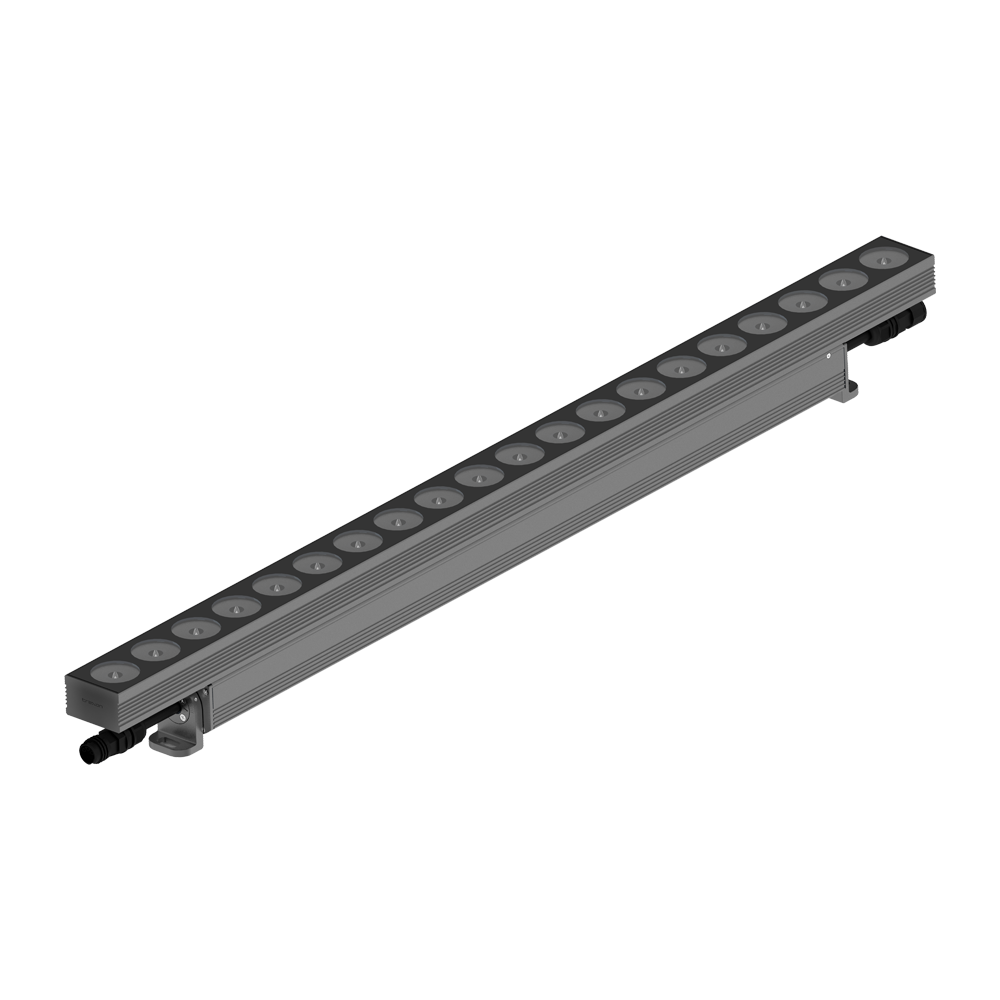

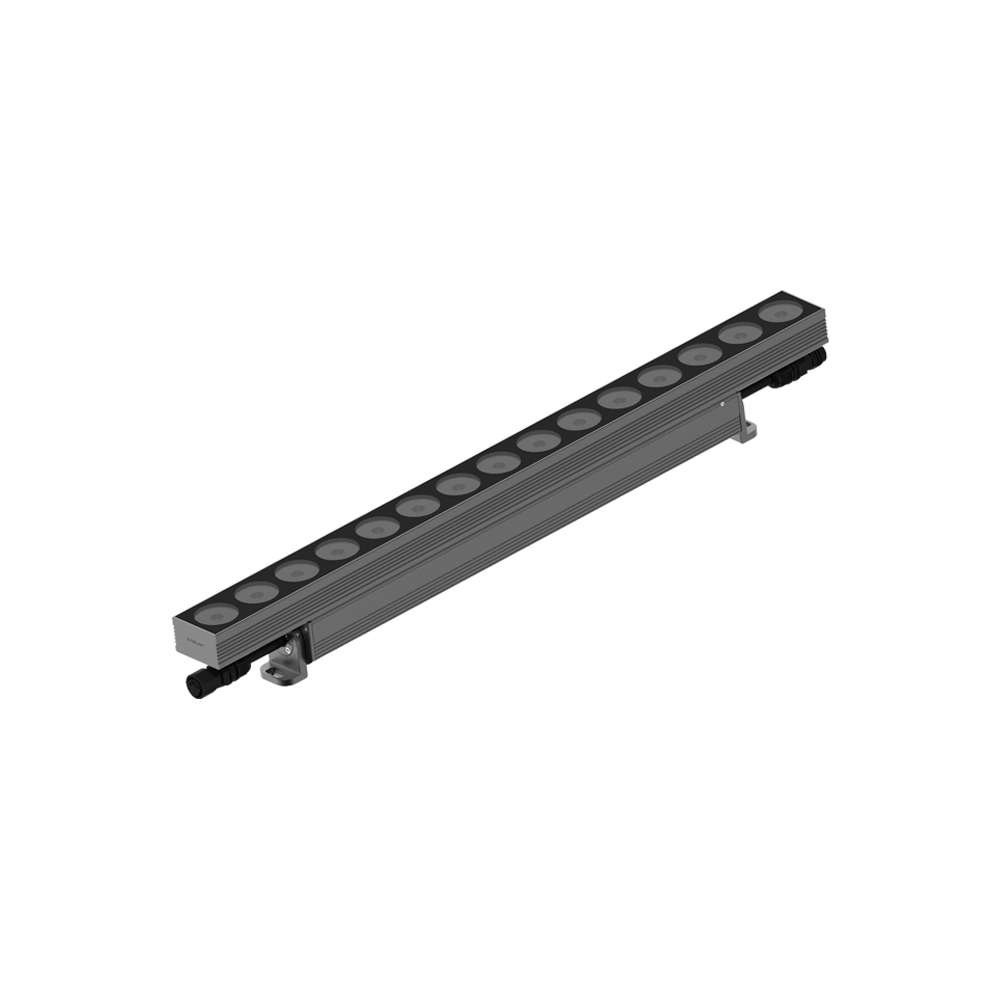

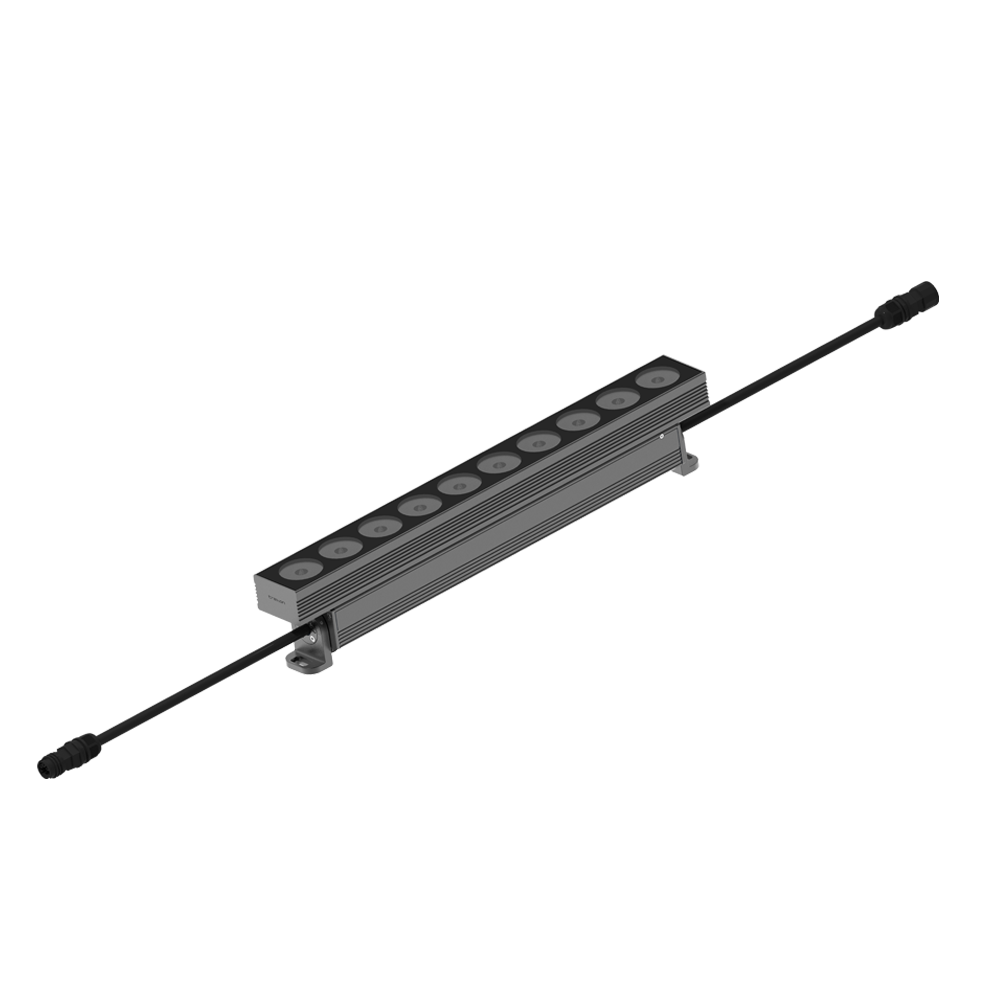

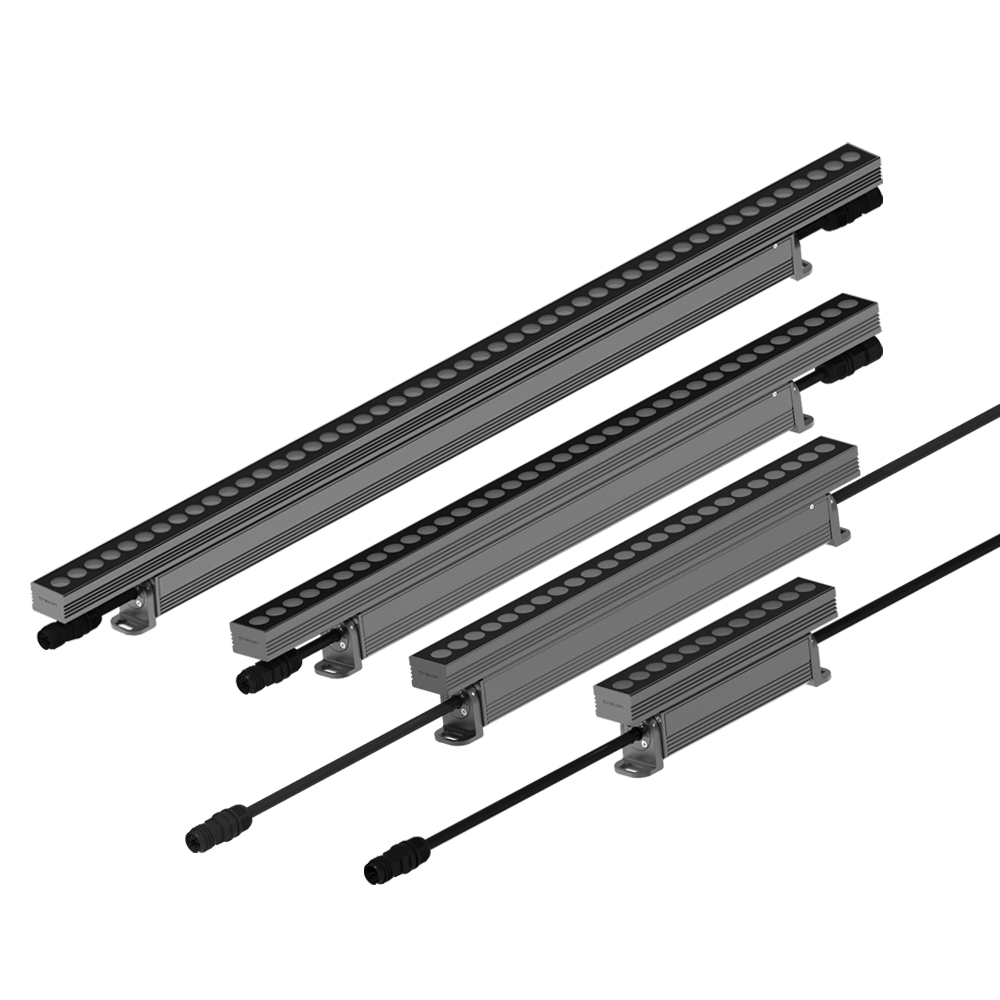

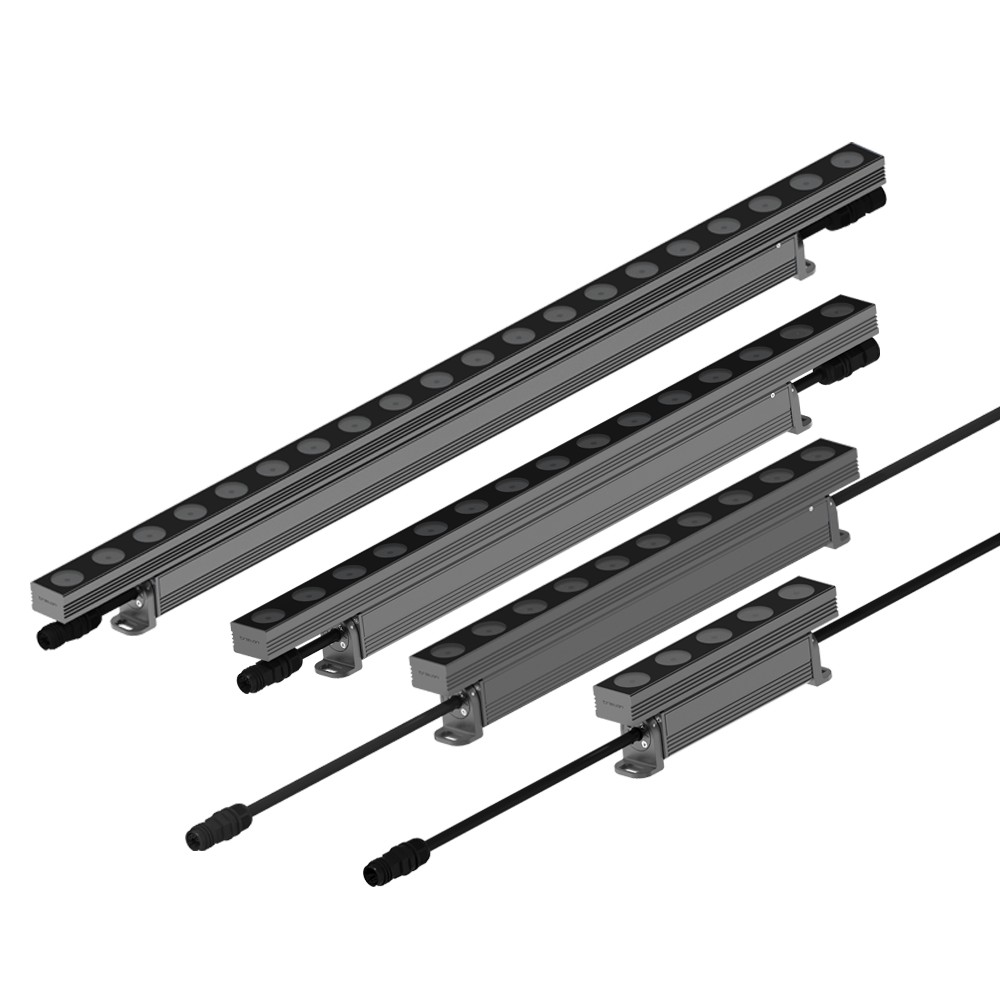

Linear Plus HO Family

Key Product Specifications

Power output per 300mm	4W, 8W, 12W, 15W
LEDs	Individual discrete LEDs per colour
Custom power output	Configurable 1-15W per 300mm
Control	DMX/RDM and 0-10V
Dynamic Boost	Yes

Power output per 300mm4W, 8W, 12W, 15W

LEDsIndividual discrete LEDs per colour

Custom power outputConfigurable 1-15W per 300mm

ControlDMX/RDM and 0-10V

Dynamic BoostYes

Temperature monitoringActive

Pixel pitch300mm / 1ft (configure in RDM)

TopologyPlug 'n' play, daisy chain

Ingress protectionIP66, coastal rated

Operating temperature-30°C to +50°C / -22°F to +122°F

Input voltage220-240V AC 50Hz (CE) / 230-277V AC 60Hz (ETL)

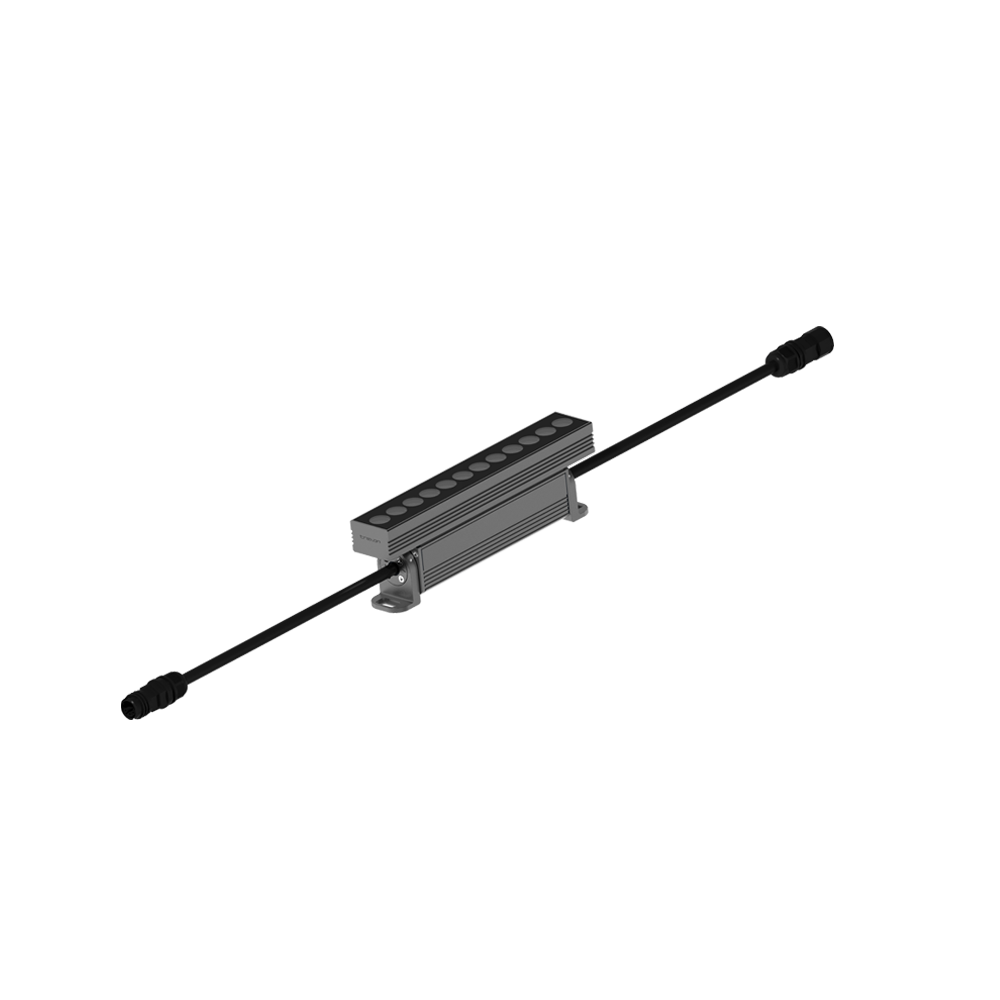

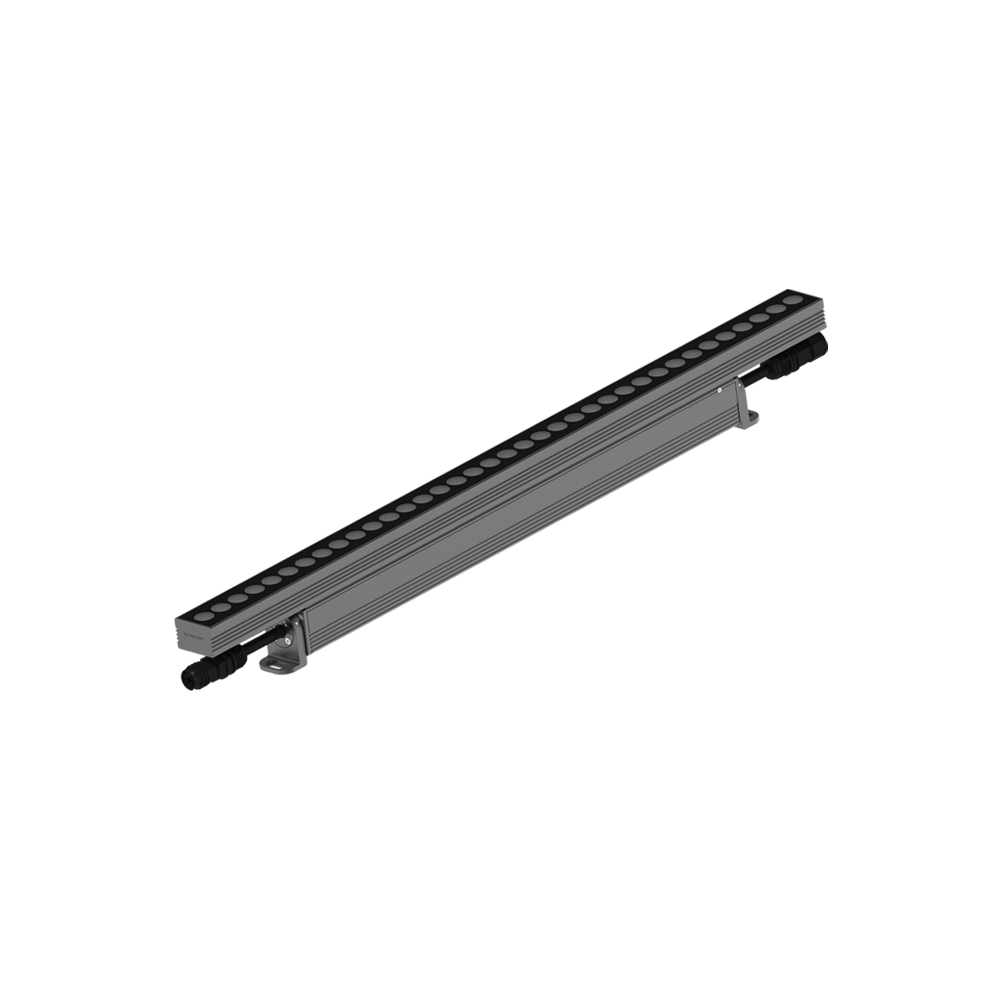

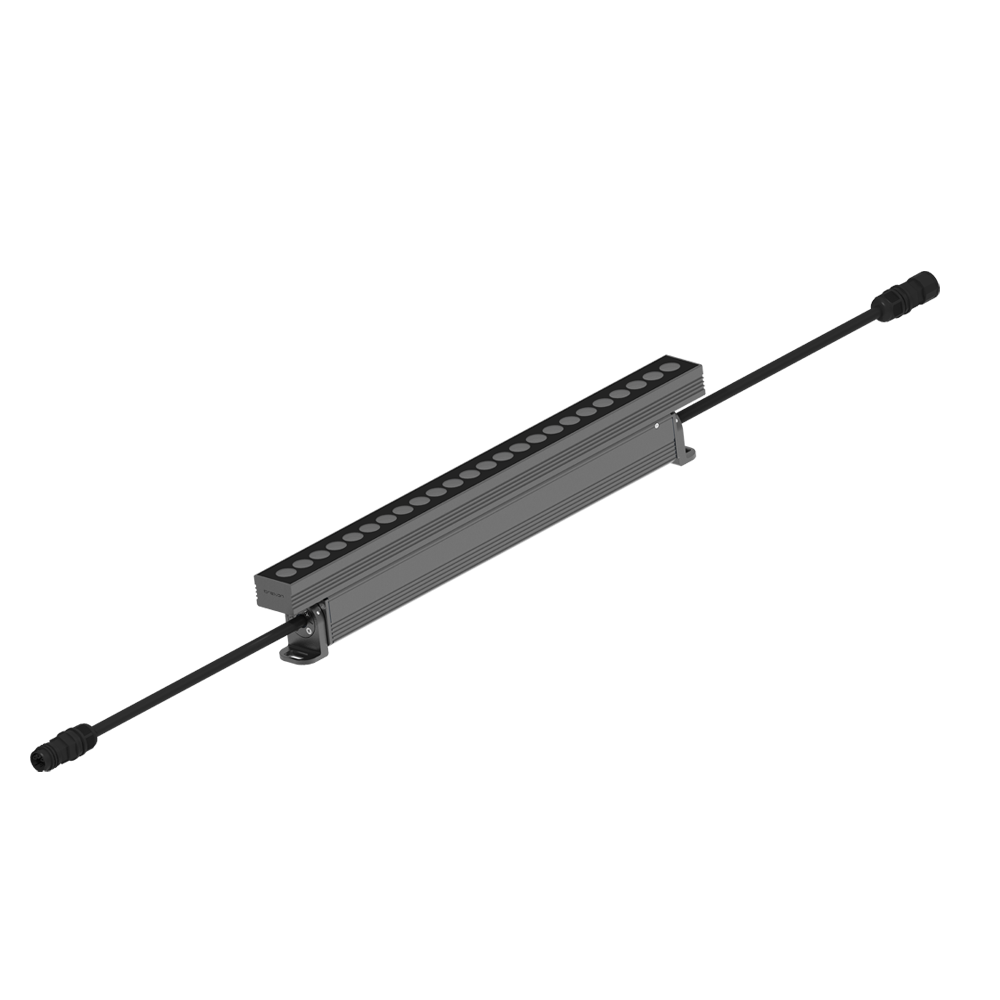

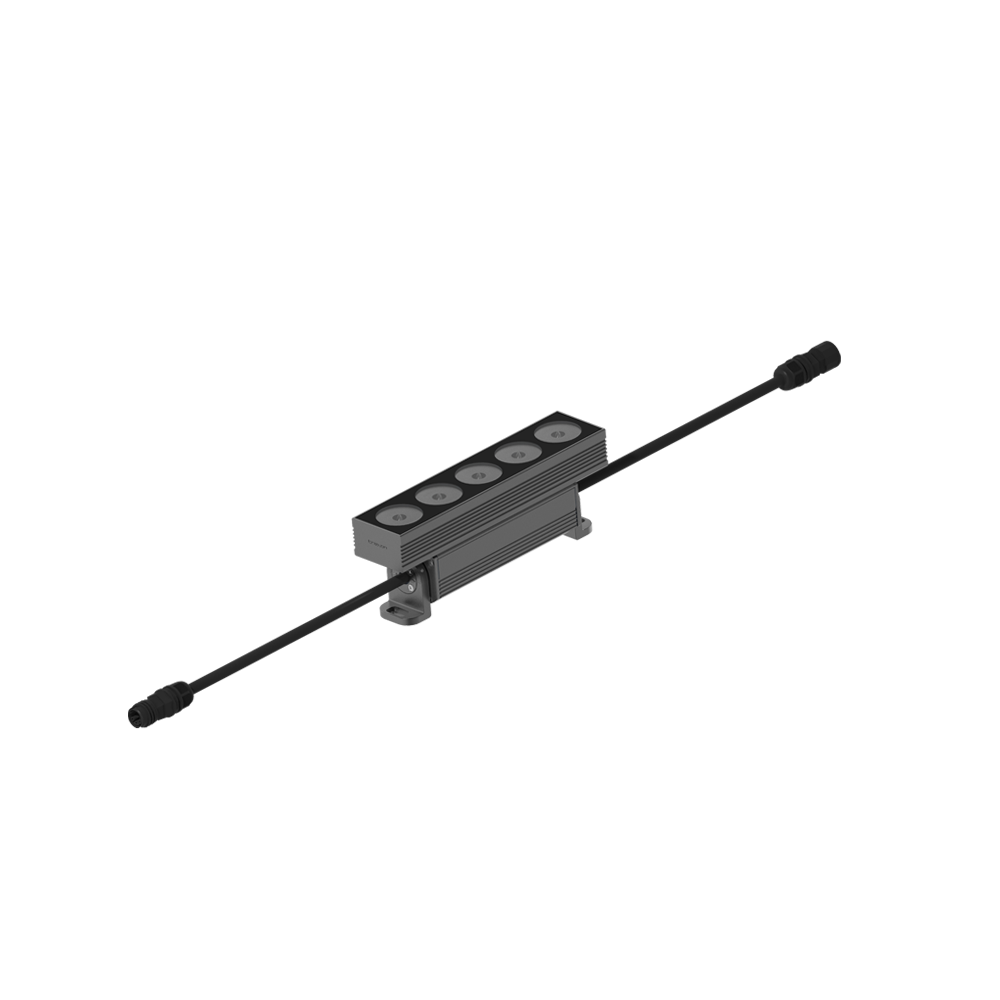

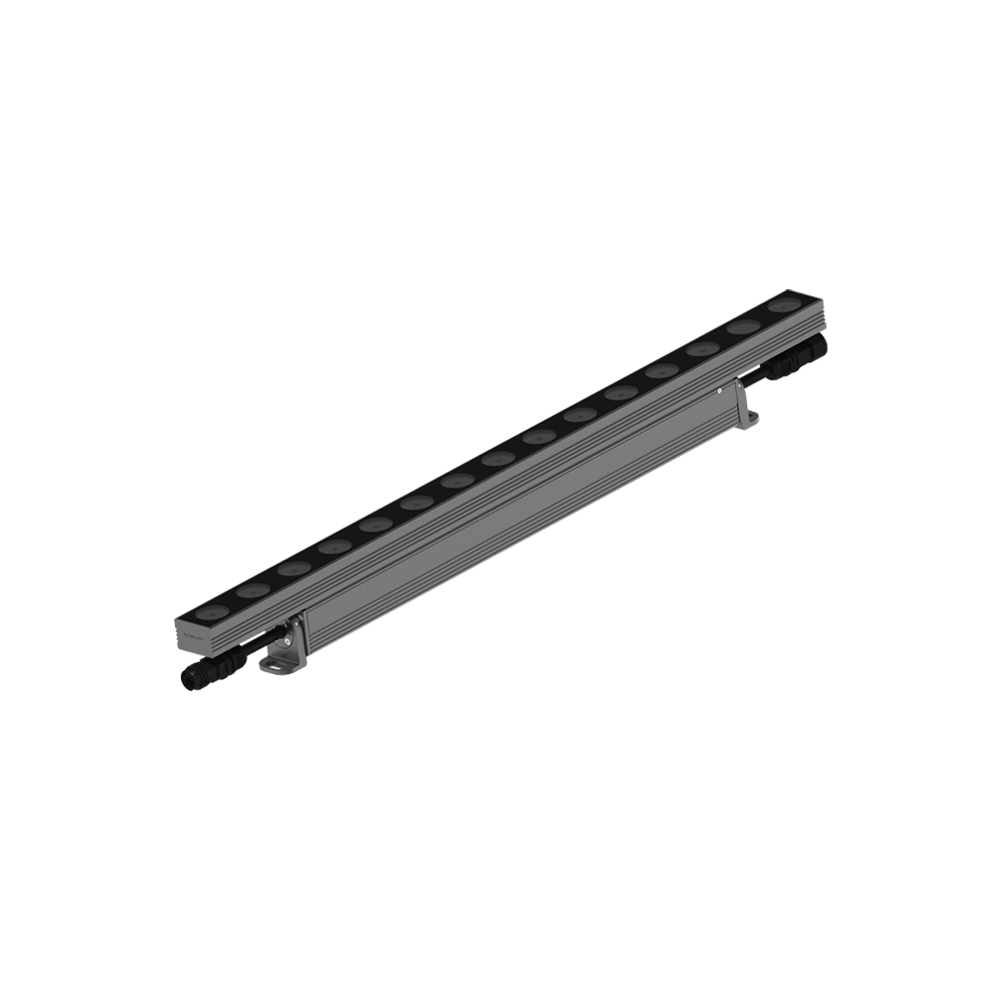

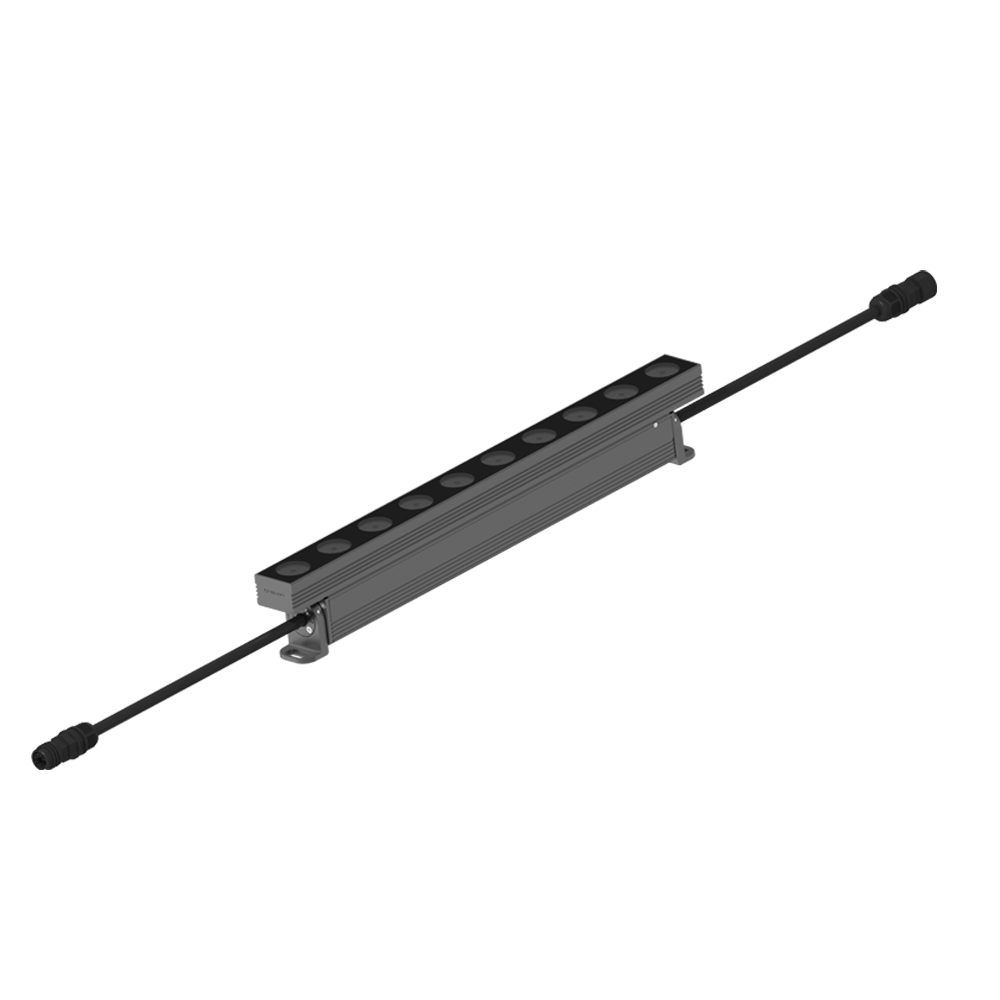

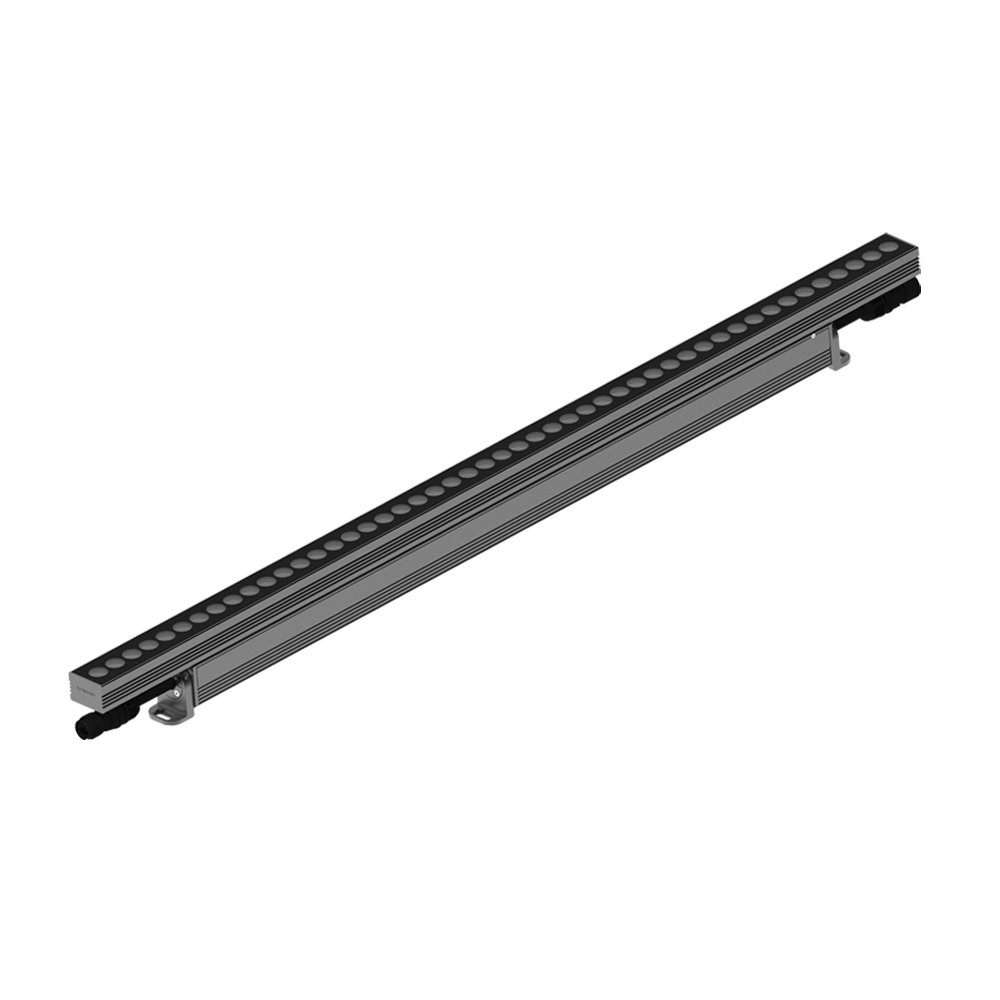

Lengths300mm / 1ft, 600mm / 2ft, 900mm / 3ft, 1200mm / 4ft

PDFProPoint Vista 200W Static White661 KB

Every model below shares the description above and differs only in the options listed.

Linear Plus HO (Test)

Linear Plus...but more (TEST)

Certifications

ETL, CE

Colour Options

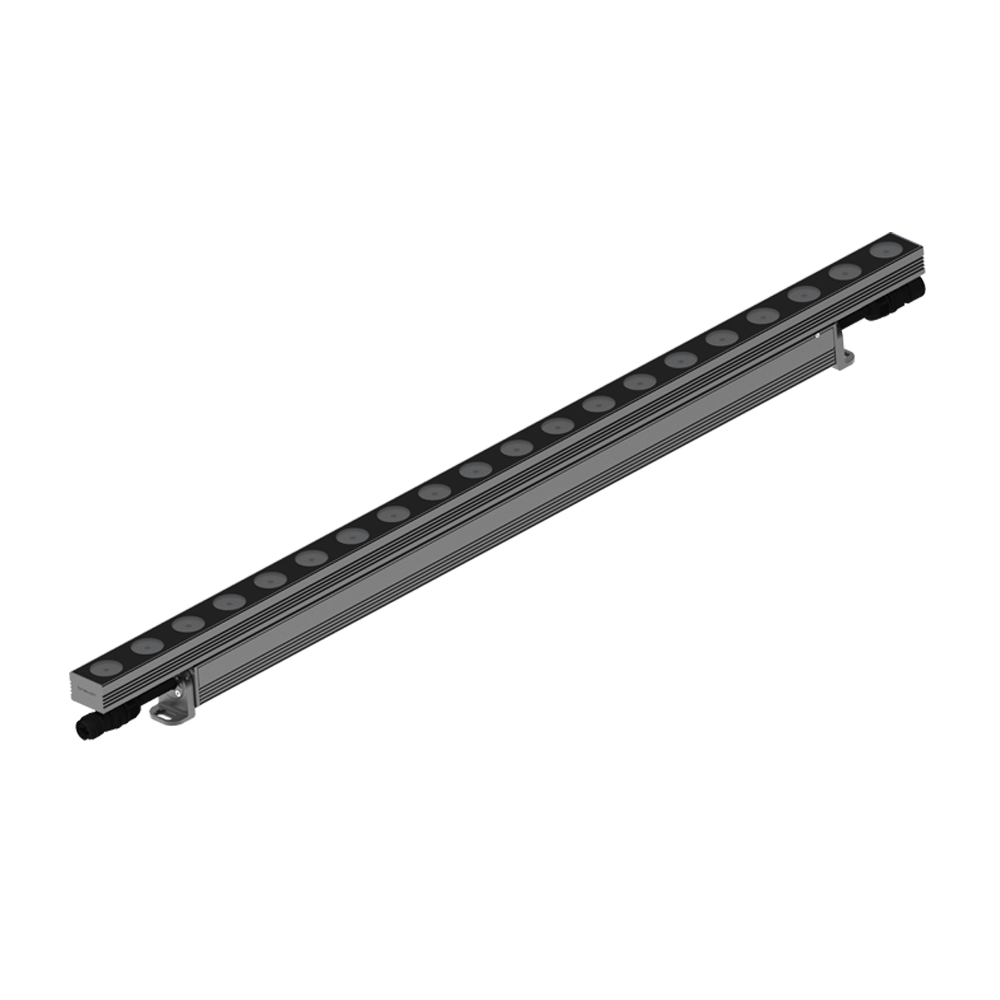

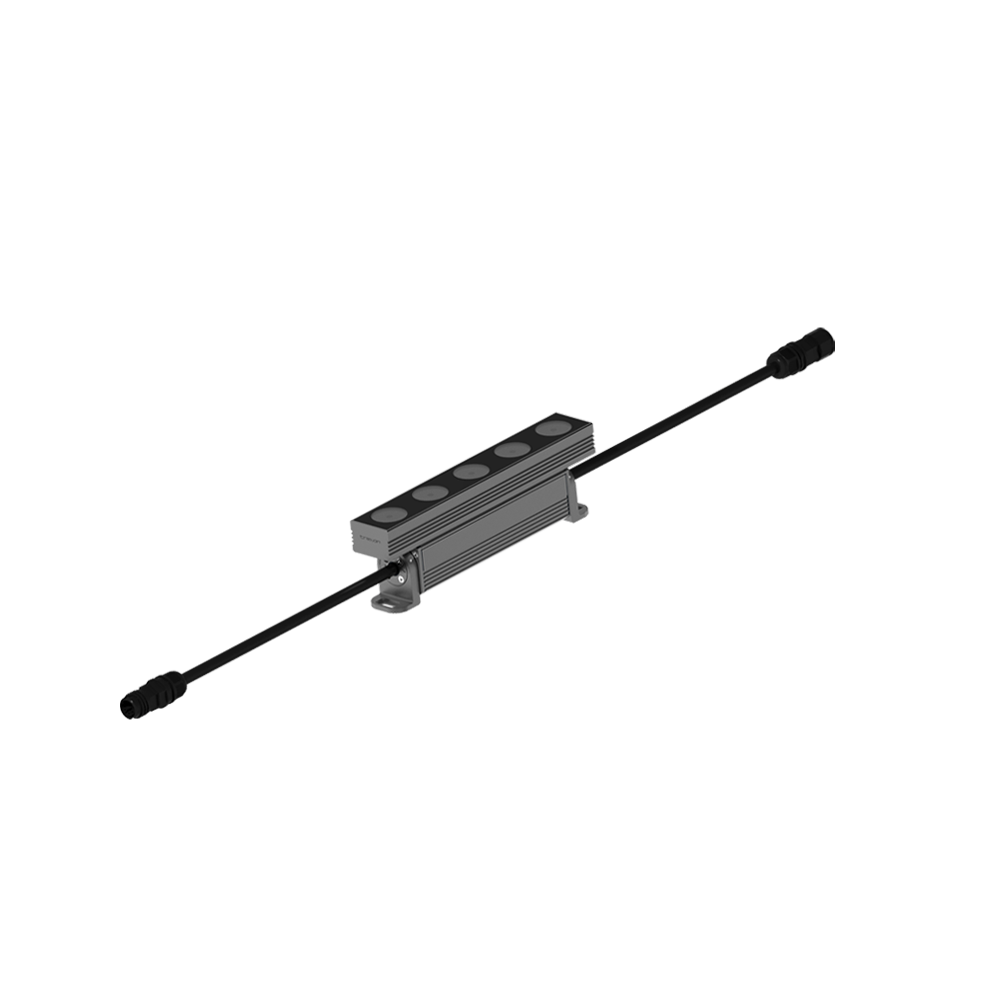

2200K, 2700K, 3000K, 3500K, 4000K, 5700K, 6500K, RGBW:3000 Discrete, RGBW:4000 Discrete, RGBW: 3000 Quad, RGBW: 4000 Quad, DW 2700K - 5700K

Miscellaneous

Auto-addressing, Easy installation and maintenance

Housing Colour

Traxon Grey RAL7005, Signal White RAL9003, Signal Black RAL9005, CUSTOM RAL
